Fibre optic Duplex patch cord OS2 LC - LC | SC - SC | LC - SC Single Mode
1 / LC - SC
£2.40
Skip to product information

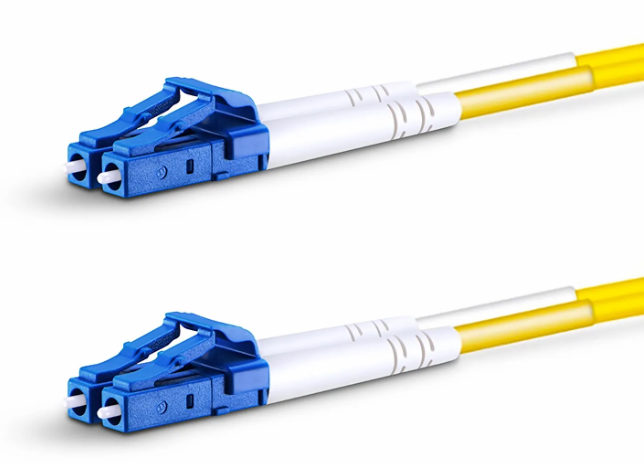

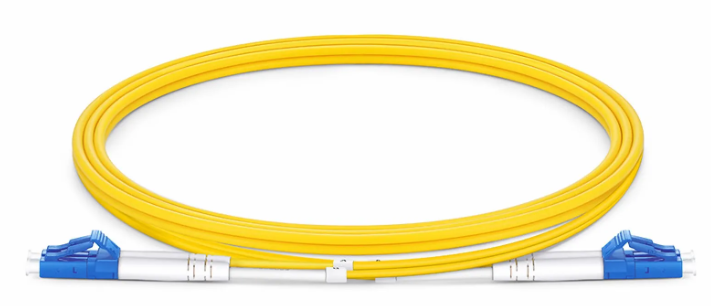

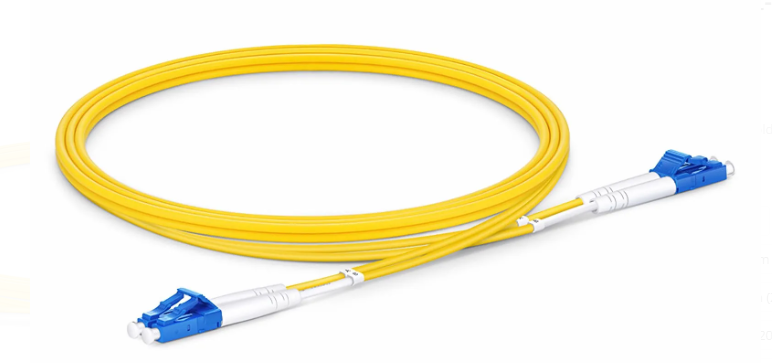

Fibre optic Duplex patch cord OS2 LC - LC | SC - SC | LC - SC Single Mode
£2.40
NdF Comms - Your trusted partner for premium fibre and copper connectivity solutions.
Explore our professional-grade fibre optic patch cord range, engineered for exceptional performance in mission-critical network environments.
Features & Benefits
■ LSZH buffer
■ Conforms to or exceeds all relevant ISO/IEC, TIA/EIA and ITU standards
■ RoHS compliant materials
■ Various colours available
■ UPC polished connector end face as standard
Applications
■ Data centres
■ Telecommunication networks
■ For use in 1-10Gb/s networks
■ CATV - cable television
■ Fibre-to-the-Home (FTTH)
| Specification | Value |
|---|---|
| Configuration | Duplex |
| Cable Material | LSZH |
| Strength Member | Aramid |
| Crush (N/100mm) | 1000 |
| Tensile (N) | 120 |
| Operating Temperature (°C) | -20 to 60℃ |
| Overfilled Modal Bandwidth (MHz x km) | ≤ 700 @ 850nm / ≤ 500 @ 1300nm |
| Attenuation (dB/km) | ≥ 2.4 @ 850nm / ≥ 0.6 @ 1300nm |
